DTP2 T 212

Key Features

  • Transmits HDMI plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable
  • DTP2 and HDMI outputs
  • Supports computer and video resolutions up to 4K/60 @ 4:4:4
  • Auto-switching between inputs
  • Analog stereo audio embedding
  • Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats

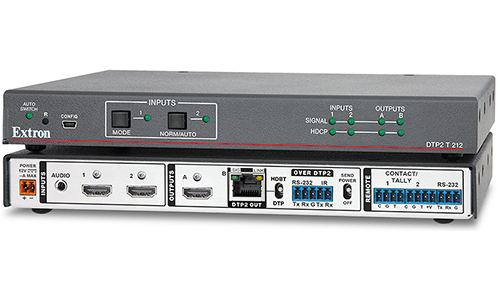

The Extron DTP2 T 212 is a two-input transmitter for sending HDMI, audio and control up to 330 feet (100 meters) over a shielded CATx cable to an Extron DTP® enabled product. It provides two HDMI inputs, one DTP2 output, and one HDMI output. It supports video resolutions up to 4K/60 at 4:4:4 chroma sampling, and complies with HDCP 2.2. Audio embedding and RS‑232 remote control facilitate integration in professional environments. Integrator-friendly features include EDID Minder®, auto-switching between inputs, and bidirectional RS‑232 and IR pass-through for remote AV device control. The low-profile enclosure enables discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.

DTP2 T 212

Two Input 4K/60 HDMI Switcher with Integrated DTP2 Transmitter and HDMI Output
