Project 315

Key Features

  • Bracket included
  • 2 way bass reflex
  • 3.5” woofer and 0.5” tweeter
  • 100V line transformer (Multi Tapp)
  • Frequency response @-10dB is 100Hz-15kHz
  • Dispersion HxV 120°x120°
  • High-pass filter recommended 70Hz-24dB/oct
  • 8-piece multiple packing
  • 15W/30W nominal/maximum power
  • Setting 2/4/7.5/15W/8ohm
  • Sensitivity 85dB
  • Max SPL 100dB

15W two Way Bass Reflex Speaker Unit

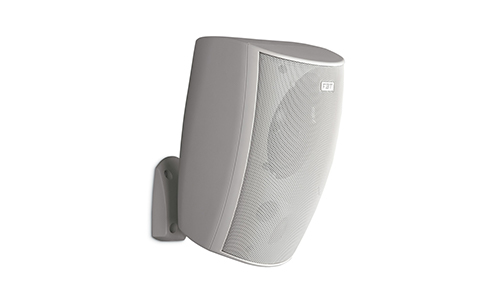

The PROJECT 315, made of ABS with a front metal grille, utilizes a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. These speaker units are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time. The bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable. Connection to the loudspeakers is via plug in "Euroblock" connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

Project 315

ABS Speaker System
