Project 530

Key Features

  • Bracket included
  • Grey or black ABS loudspeaker
  • 2 way bass reflex
  • 5” woofer and 0.75” tweeter
  • 100V line transformer(Multi Tapp)
  • Frequency response @-10dB 85Hz-20kHz
  • Dispersion HxV 100°x100°
  • High-pass filter recommended 55Hz-24dB/oct
  • 30W/60W nominal/maximum power
  • Setting 10/15/20/30W/8ohm
  • Sensitivity 87.5dB
  • Max SPL 106dB

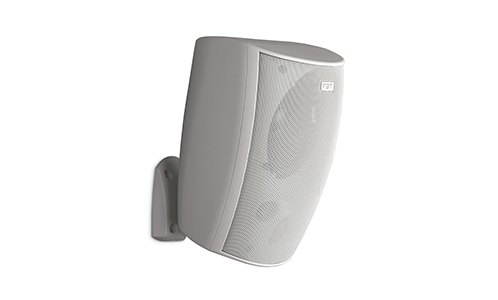

30W two Way Bass Reflex Speaker Unit

The PROJECT 530, made of ABS with a front metal grille, utilizes a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. These speaker units are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time. The bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable. Connection to the loudspeakers is via plug in "Euroblock" connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

Project 530

ABS Speaker System
